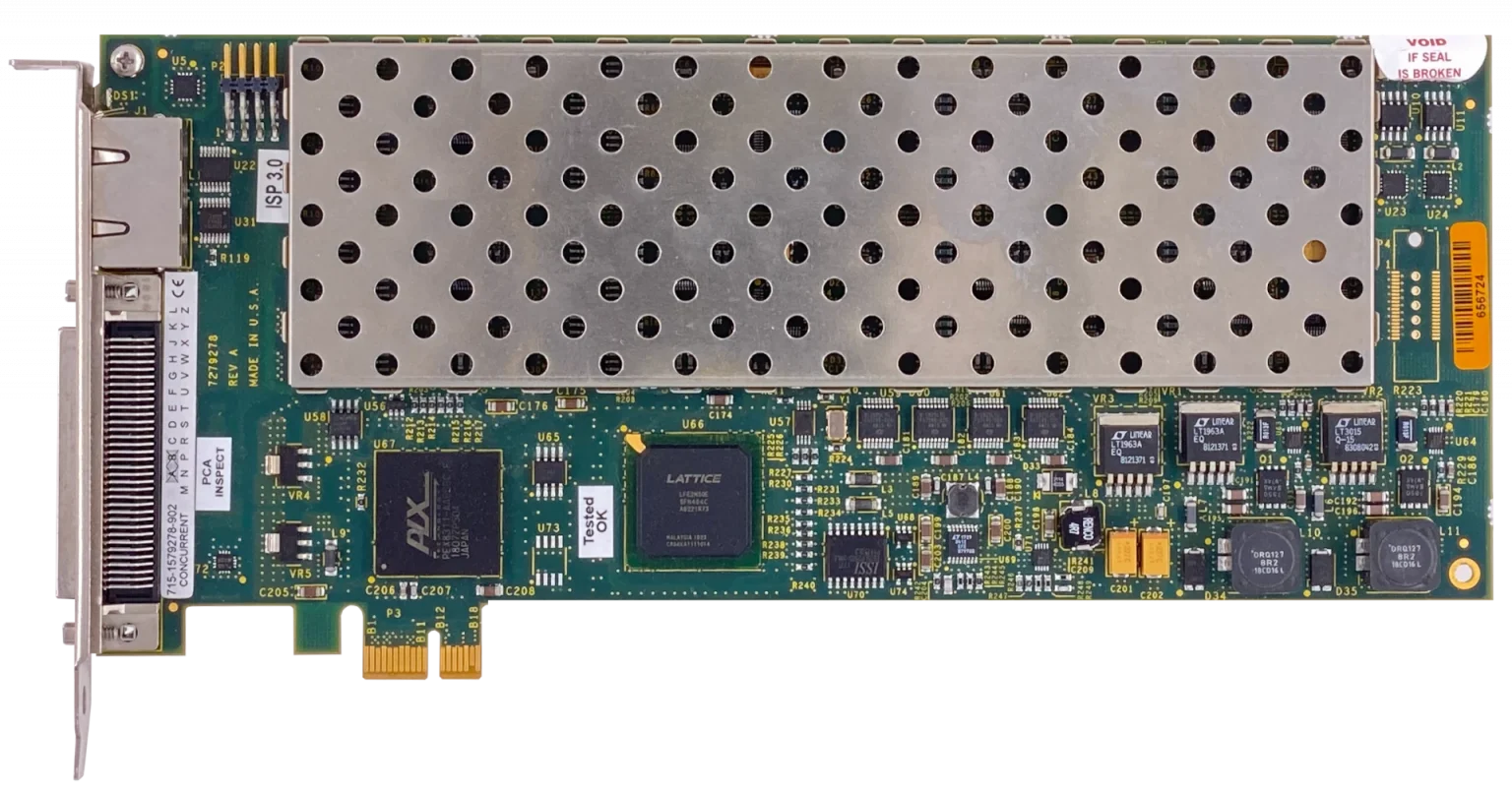

Programmable FPGA Card
Price range: $12,678.00 through $14,758.00
Concurrent Real-Time’s family of programmable FPGA PCIe cards feature a powerful field programmable gate array that supports both digital and analog I/O. The cards can control up to 96 digital I/O signals along with 16 analog inputs and 16 analog outputs. Each card’s I/O functionality is fully customizable by the user by means of the FPGA Workbench tools. The cards feature isolated I/O power, high-speed digital isolators and multi-board synchronization. Optional NIST traceable calibration is available for the analog section. The cards are available with 362K or 504K logic elements.
Each request is reviewed by our engineering and sales teams to ensure configuration accuracy, system compatibility, and delivery requirements.
What is the Programmable FPGA Card?
Concurrent Real-Time’s family of programmable FPGA PCIe cards feature a powerful field programmable gate array that supports both digital and analog I/O. The cards can control up to 96 digital I/O signals along with 16 analog inputs and 16 analog outputs. Each card’s I/O functionality is fully customizable by the user by means of the FPGA Workbench tools. The cards feature isolated I/O power, high-speed digital isolators and multi-board synchronization. Optional NIST traceable calibration is available for the analog section. The cards are available with 362K or 504K logic elements.
Specifications
Features
| Output | 4-channel TTL simulating wheel speed sensor signals |
| Base Frequency | 66 MHz |
| Tooth Wheel Profiles | Programmable for up to 100 teeth per channel |
| Angular Resolution | 0.01 degrees |
| RPM | +10,000 RPM to -10,000 RPM with a resolution of 0.001 RPM |
| External Connectors | Molex LFH-60 |
| PCI | PCIe x1 Gen 1 |
Packaging
| Dimensions | PCIe x1 full-height, half-length |
Power Requirements
| Power | Approximately 5 watts |
Ordering Information
| 4-channel Wheel Speed Sensor Output Card | CP-PWM-1204 |
| PWM Output and Wheel Speed Sensor Interface Assembly | CX-LFH60-OUT |
| SIMulation Workbench License | ICS-SWB-1242 |
| PWM Output and Wheel Speed Sensor Interface Assembly with DIN Mounting | CX-LFH60-OUT-DIN |
