SENT Protocol 12-Channel Card

Contact an Expert

What is the SENT Protocol 12-Channel Card?

Concurrent Real-Time’s SENT protocol I/O card is ideal for use in high-performance hardware-in-the-loop (HIL) simulation and test applications. The PCIe card supports the Single Edge Nibble Transmission (SENT) protocol as specified by SAE J2716. The card provides 12 SENT input (decoder) and output channels. The number of data nibbles per message can be configured between 1 and 6. The basic SENT protocol tick length, which defaults to 3 microseconds, can be varied on the fly. The card supports both legacy and current CRC-4 calculations as well as optional pause pulse. Additionally, the implementation supports both short and enhanced-format messages with 4-bit and 8-bit IDs.

The SENT protocol I/O card is fully supported by Concurrent’s RedHawk Linux operating system on iHawk SIMulation Workbench platforms. Multiple cards can be installed in a single system. A Molex LFH-60 connector is mounted on each card for connection to external devices.

Download the Data Sheet

SENT Output

12-channel TTL

SENT Input

12-channel TTL

Base Frequency

66 MHz

Fast Channel

1 to 6 nibbles

Short Format

16-bit sequence

Enhanced Format

18-bit sequence (12-bit data and 8-bit message or 16-bit data and 4-bit message)

Multi-card Support

Yes

External Connectors

Molex LFH-60

PCI

PCIe x1 Gen 1

Dimensions

FHHL PCIe

Power

Approximately 5 watts

12-channel SENT protocol I/O Card

CP-SENT-12

I/O Interface Assembly with 6-foot Cable

CX-LFH60

SIMulation Workbench License

ICS-SWB-1242

I/O Interface Assembly with 6-foot Cable with DIN Mounting

CX-LFH60-DIN

More Real-Time I/O Cards

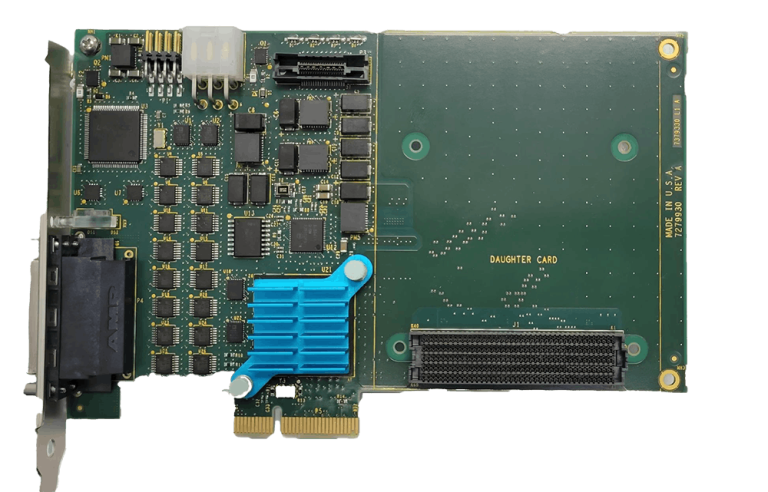

  • Pulse Width Modulation Input/Output PCIe card

    Pulse Width Modulation Input/Output PCIe card More Real-Time I/O Cards

    Read more

  • CP-FPGA-6: SignalHawk I/O Programmable FPGA Card

    The SignalHawk I/O CP-FPGA-6 is a high-performance, low-latency FPGA card designed for advanced real-time applications including simulation, signal processing, and industrial control. With flexible I/O capabilities, robust DMA performance, and precise timing…

    Read more

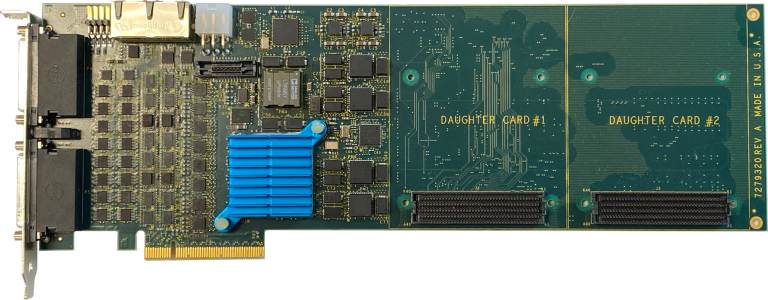

  • Arria 10 FPGA Card
