Real-time systems are designed to operate within strict timing constraints. In these environments, correctness depends not only on what the system does, but also on when it does it.

As systems become more complex, debugging and analyzing real-time behavior becomes increasingly difficult. Issues related to timing, latency, synchronization, and system interaction may only appear under specific operating conditions and are often difficult to reproduce.

Traditional debugging techniques are not always effective in these environments because the act of debugging itself can alter system behavior.

This is why real-time systems require specialized approaches to debugging, tracing, and performance analysis.

Why Real-Time Systems Are Difficult to Debug

In many applications, developers can pause execution, inspect state, and step through code without affecting functionality.

Real-time systems operate differently.

Stopping execution can:

• alter scheduling behavior
• introduce latency
• disrupt synchronization between tasks
• mask timing-related issues

This makes many traditional debugging methods unreliable for analyzing real-time behavior.

The Importance of Timing and Determinism

Real-time systems rely on:

• predictable execution timing
• deterministic scheduling
• controlled system response

These characteristics are fundamental to deterministic computing , where tasks execute within known and repeatable timing boundaries.

Variability in timing can lead to:

• unstable control behavior
• synchronization problems
• inconsistent system response

Understanding how timing affects system behavior is a core part of real-time debugging and validation.

Interrupt Latency and Jitter

Two important factors in real-time performance are:

• interrupt latency
• jitter in real-time systems

Interrupt latency measures how quickly the system responds to events, while jitter measures variability in timing behavior over time.

Both directly affect how reliably a real-time system behaves under load.

Why Traditional Debugging Fails

Traditional debugging techniques such as breakpoints and step-through execution interrupt system timing.

In real-time systems, this can:

• change task scheduling
• affect interrupt handling
• hide intermittent timing issues

As a result, systems may behave differently while being debugged than they do during normal operation.

Understanding these limitations is essential when diagnosing timing-related issues.

Read More: Why Traditional Debugging Fails in Real-Time Systems

Real-Time Debugging Without Disrupting Execution

Modern real-time debugging techniques focus on observing system behavior while preserving timing characteristics.

This includes:

• runtime monitoring
• event tracing
• non-intrusive analysis techniques

Instead of stopping execution, engineers analyze how the system behaves over time under realistic operating conditions.

Read More: How to Debug Real-Time Systems Without Disrupting Execution

Event Tracing and System Visibility

One of the most effective methods for analyzing real-time systems is event tracing.

Event tracing records system activity as a sequence of time-stamped events, allowing engineers to observe:

• task execution order
• interrupt activity
• synchronization between processes
• system behavior under load

This timeline-based approach makes it easier to identify timing issues that are difficult to reproduce through traditional debugging methods.

Debugging Multi-Core and Multi-Threaded Systems

Modern real-time applications often involve:

• multiple CPU cores
• concurrent threads
• distributed processes

Issues frequently arise from interactions between these components rather than isolated failures within a single task.

Effective debugging tools must provide visibility across the entire system, including:

• process interaction
• thread synchronization
• timing relationships across cores

The Role of Real-Time Platforms

Debugging accuracy depends heavily on the underlying platform.

Real-Time platforms such as RedHawk Linux provide:

• deterministic scheduling
• low and consistent latency
• CPU isolation capabilities
• predictable execution behavior

These capabilities help maintain stable and repeatable conditions during analysis.

Real-Time Debugging in Simulation and Validation

Real-time debugging is especially important in:

• hardware-in-the-loop (HIL) simulation
• system integration testing
• performance validation

In these environments, engineers are validating not just software functionality, but:

• timing behavior
• system interaction
• response consistency

Maintaining simulation fidelity during debugging is critical for accurate validation.

Supporting Real-Time Analysis with NightStar Tools

NightStar Tools provide an integrated environment for debugging, tracing, monitoring, and analyzing real-time systems.

Capabilities include:

• source-level debugging
• event tracing
• runtime monitoring
• performance tuning

These tools are designed to operate with minimal intrusion, allowing engineers to observe and analyze system behavior without disrupting execution.

Integrated Toolset

NightStar Tools include:

• NightView – source-level debugging for multi-threaded and multi-process applications

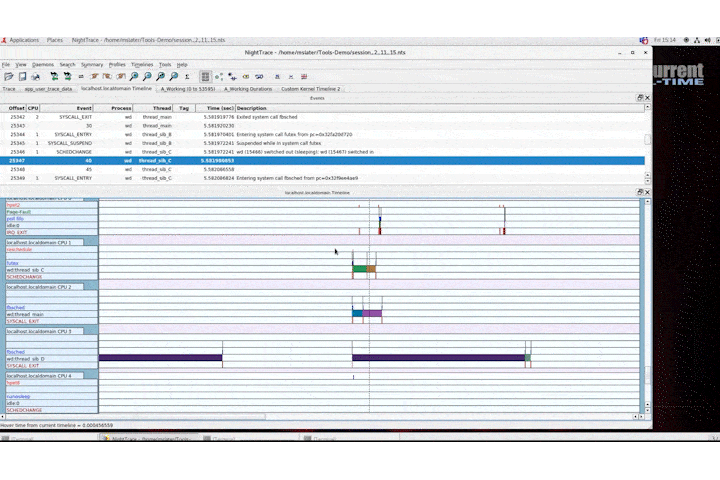

• NightTrace – event tracing and timing analysis
• NightProbe – runtime monitoring and data collection
• NightTune – system tuning and performance optimization
• NightSim – scheduling and simulation control

Together, these tools provide visibility into system behavior across development, integration, and validation workflows.

From Debugging to System Understanding

Debugging real-time systems is not simply about finding software defects. It is about understanding how:

• timing
• scheduling
• latency
• system interaction

affect overall behavior.

The ability to observe systems under realistic operating conditions is essential for identifying issues that only emerge during runtime.

Real-time systems require specialized approaches to debugging and analysis. Timing-related issues are often difficult to reproduce and may only appear under specific operating conditions.

By combining deterministic platforms, non-intrusive debugging techniques, and event tracing tools, engineers can gain the visibility needed to analyze system behavior accurately and improve overall system reliability.
