CPU shielding is a technique used in real-time systems to isolate processor cores so that time-critical applications can run without interference from background processes or operating system tasks.

In general-purpose systems, multiple processes share CPU resources. While this approach maximizes efficiency, it can introduce variability in execution timing.

CPU shielding addresses this by dedicating specific cores to real-time workloads, ensuring predictable system behavior.

Why CPU Sharing Causes Problems

In standard operating systems, CPU resources are shared across:

• user applications
• system processes
• background services
• interrupt handling

This can result in:

• scheduling delays
• resource contention
• unpredictable execution timing

For most applications, this variability is acceptable. In real-time systems, it can affect system behavior.

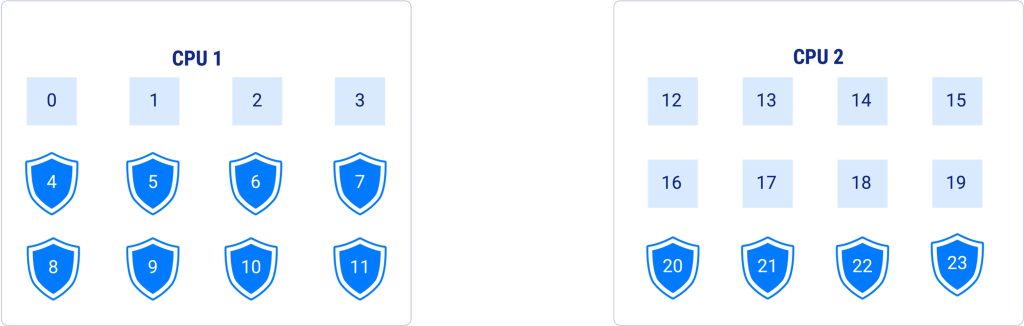

How CPU Shielding Works

CPU shielding isolates one or more processor cores from general system activity.

Without Shielding:
CPU 0 → OS + background tasks + application
CPU 1 → OS + background tasks + application

With Shielding:
CPU 0 → OS + background tasks
CPU 1 → Real-time application only

This separation ensures that real-time tasks have dedicated access to CPU resources.

Benefits of CPU Shielding

Predictable Execution Timing

Real-time tasks run without interruption, reducing variability in execution.

Reduced Latency

Interrupts and scheduling delays are minimized, improving system responsiveness.

Improved System Stability

Consistent execution behavior allows engineers to evaluate system performance more accurately.

CPU Shielding in Simulation and Validation

CPU shielding is particularly important in environments where simulation must reflect real-world system behavior.

In hardware-in-the-loop environments, uncontrolled CPU sharing can introduce variability that affects:

• timing analysis
• latency measurement
• system synchronization

By isolating CPU resources, engineers can ensure that observed behavior reflects actual system performance rather than operating system variability.

RedHawk Linux and CPU Shielding

RedHawk Linux provides advanced CPU shielding capabilities designed for real-time workloads.

It allows developers to:

• isolate processor cores for real-time applications
• control task scheduling and prioritization
• maintain deterministic system behavior under load

This enables simulation and validation environments to operate with consistent and predictable timing.

CPU shielding is a fundamental technique for achieving deterministic performance in real-time systems.

By isolating processor resources, it allows engineers to control execution behavior and reduce variability, making it easier to validate system performance in time-critical environments.
